CSL0106 Cell Door – Custom & Excise

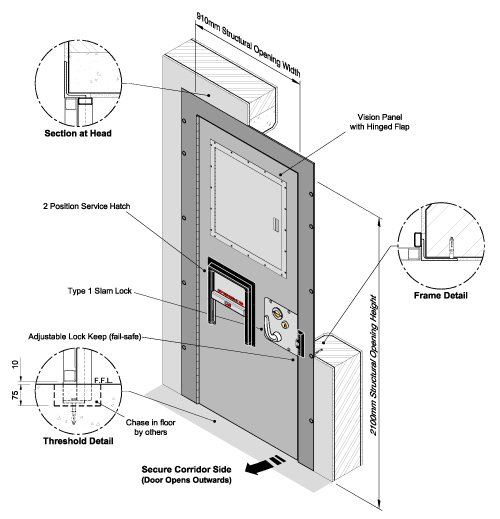

Specification
  • Door panel constructed from 40mm wide rolled hollow steel sections with 3mm thick steel door skins.
  • Mineral wool insulation to all internal voids.
  • 125mm x 75mm x 8mm rolled steel angle frame.
  • 50mm x 25mm RHS rebate.
  • Frame fixed into the structural opening with concealed 12mm dia sleeve anchors.
  • Door panel mounted within the door frame and hung on a substantial continuous hinge.
  • Reinforcing plates to inside of door panel on cell side up to the height of the lock.
  • Home Office Type 1 slam action lock with adjustable keep.
  • Single hand operation 2 position service hatch.
  • 500mm x 500mm x 22.3mm thick physical attack laminated/toughened glass vision panel with hinged steel cover.
Finish
  • One coat factory applied high build zinc phosphate primer to all mild steel surfaces.
