CSL0617 Fire Rated Roof Light
Specification

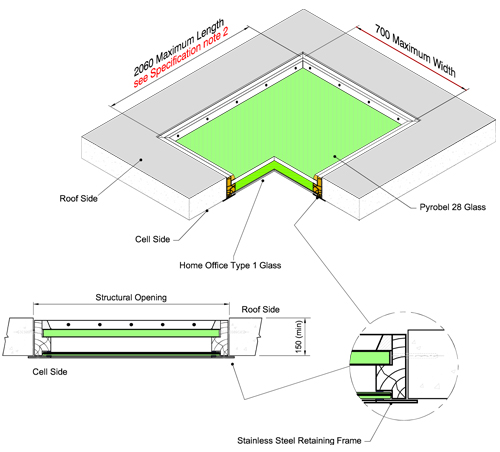

- Constructed from an American ‘White Oak’ hardwood frame.
- Glass roof side comprises of Pyrobel 28 - E160 specification achieving a fire rating of 60 minutes integrity / 60 minutes insulation.
- Maximum glass size in one piece is 700mm x 2060mm. Above this size additional mullions are required.
- Glass cell side is Home Office Type 1 to withstand replicated excessive prisoner abuse and comprises of laminated 8mm thick toughened glass (cell side) with 2mm thick interlayer and 4mm thick ‘Opaque’polycarbonate sheet.
- Secured with stainless steel retaining frame.
- Fixing through hardwood frame to suit a variety of opening construction.
- Hardwood painted with two coats of water bourne varnish.
- Special frame to enable all fixings from cell side.
- Multi-panel assemblies.
