CSL1719 Concrete Observation Unit

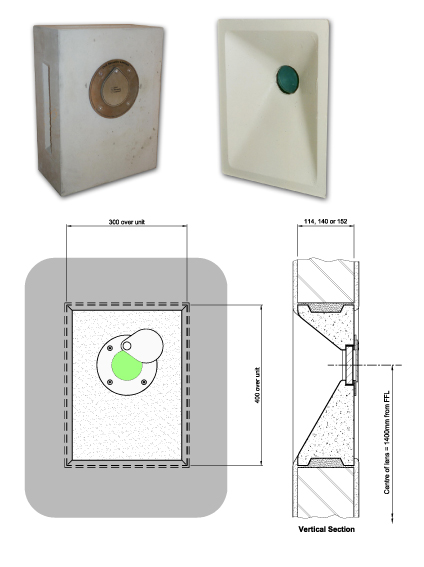

Purpose A discreet ‘built into the cell wall’ concrete viewing facility with the cell side of the unit splayed for greater visibility within the cell. Specification
- Observation Unit constructed from structural cast stone to BS 1217:1997.
- Designed to be built into the cell wall to provide a discreet viewing facility.
- The cell side is splayed, providing a 75mm diameter aperture which is glazed with 19mm thick polished plate glass lens.
- The corridor side is supplied with a stainless steel swivel cover.
- Three units available to suit wall thickness's of - 114mm, 140mm and 152mm.
- Building-in lugs can be provided.
- Non-standard colours can be provided on request
